Line Boring Machine for Heavy Equipment: Your Essential Guide

Worn-out holes in your heavy equipment can cause big problems. Think about your excavator’s swing eye or a loader’s bucket pivot. When these crucial connection points get sloppy, it leads to a domino effect of issues. Poor alignment causes uneven wear on other parts, makes operation jerky and inaccurate, and can even lead to catastrophic failures. It’s a frustrating cycle that can sideline your valuable machinery. But there’s a powerful solution: the line boring machine.

This guide is your straightforward look at how these machines work their magic. We’ll break down what they do, why they’re so important, and how you can understand them better. Get ready to learn how to bring your heavy equipment back to peak performance with precision hole repair.

What Exactly is a Line Boring Machine for Heavy Equipment?

At its core, a line boring machine for heavy equipment is a specialized tool designed to precisely recondition damaged or worn cylindrical holes in metal components. Imagine the pivot points on a bulldozer or excavator – these are typically large, round holes where pins or shafts connect different parts. Over time, through constant stress, dirt, and friction, these holes can become oval-shaped or oversized. This is where line boring comes in.

A line boring machine achieves this by using a rotating cutting bar that is precisely machined to be perfectly straight. This bar is inserted through the worn hole, clamped securely, and rotated. As the bar spins, rotating cutting tools attached to it remove metal from the worn area, essentially creating a new, perfectly round hole with a consistent diameter. The machine is set up to ensure that the new hole is aligned with original bore centers, which is critical for the proper functioning of the equipment.

Think of it like this: if you have a slightly bent straw and you need to make it perfectly straight again, you wouldn’t just try to bend it back. You’d either replace it or carefully sand it down to its original roundness and straightness. A line boring machine does that sanding, but with incredible precision and control.

Why is Line Boring Critical for Heavy Equipment?

The importance of maintaining perfectly aligned bores in heavy equipment cannot be overstated. These bores are the connection points for many essential functions and moving parts. When they are compromised, the consequences can be severe and costly.

• Restores Original Alignment: The primary benefit of line boring is its ability to restore the original alignment between mating components. This ensures that pins, shafts, and pins fit snugly and move freely without unnecessary play.
• Prevents Further Damage: A worn bore creates excessive play. This play forces other components to work harder and at incorrect angles, accelerating wear on bushings, pins, hydraulic cylinders, and even the structural integrity of the equipment. Line boring prevents this cascading damage.
• Extends Equipment Life: By correcting worn holes and restoring proper fit, line boring effectively extends the operational life of expensive heavy equipment components. Instead of replacing an entire (and often very costly) component, you can repair the worn bore.
• Improves Performance: Properly aligned and bored holes lead to smoother operation. Joints move more predictably, hydraulic systems function more efficiently, and the overall performance of the machine is enhanced.
• Reduces Downtime and Saves Money: Downtime for heavy equipment is incredibly expensive. Line boring is often a much faster and more cost-effective solution than component replacement or the purchase of new machinery. It gets your equipment back to work sooner.
• Ensures Safety: Misaligned components can lead to unpredictable movements or even component failure, posing a significant safety risk to operators and those working nearby. Precise repairs ensure the equipment operates as intended.

Common Applications for Line Boring in Heavy Equipment

You’ll find line boring machines indispensable across a wide range of heavy equipment and industries. Their ability to precisely repair critical bore alignment makes them a go-to solution for maintenance and repair shops.

Excavators

Excavators are a prime example of equipment that benefits greatly from line boring. Key areas include:

• Boom and Arm Joints: The pivot points where the boom connects to the swing mechanism and where the arm (or stick) connects to the boom are subject to immense stress.
• Bucket Lugs: The ears on the excavator’s boom that hold the bucket are common wear points, affecting bucket articulation and stability.
• Swing Frame/Bearing Housing: The large central pivot where the upper structure rotates on the undercarriage.

Loaders (Wheel Loaders, Backhoe Loaders)

Loaders rely on precise pivot points for their powerful lifting and digging actions.

• Bucket Hinge Points: The points where the loader arms meet the bucket assembly.
• Articulation Joints: The central pivot point that allows the front and rear sections of the loader to steer.
• Frame Mounts: Various points where the loader frame connects to other components.

Dozers and Tractors

These machines are built for pushing and pulling, putting significant strain on their structural components.

• Blade Mounts: The pivot points for adjusting the angle and tilt of the dozer blade.
• Ripper Mounts: The points where the hydraulic cylinders for the ripper are attached.
• Steering Components: In some tractor designs, steering linkages may require line boring.

Cranes

The stability and precision of crane operation depend on well-maintained pivot points.

• Boom Sections: The joints connecting different sections of the telescopic or lattice boom.
• Slewing Ring/Bearing Bores: The large central bore that allows the crane cab and boom to rotate.
• Outrigger Boxes: The mounting points for the outriggers that stabilize the crane.

Other Heavy Equipment

The principle applies to virtually any machine with heavy-duty pivot points:

• Dump Trucks: Bed pivot points, tailgate hinges.
• Articulated Haulers: Steering articulation points.
• Scissor Lifts and Boom Lifts: Pivot points for the lifting mechanisms.
• Mining Equipment: Draglines, drills, and crushing machinery often have very large, critical bores.

The ability to repair these bores accurately on-site or in a workshop makes line boring machines incredibly versatile and valuable assets for any fleet maintenance operation or repair shop. For more information on heavy equipment repair standards, resources like the OSHA regulations concerning heavy equipment safety and maintenance can provide context for the importance of proper repair.

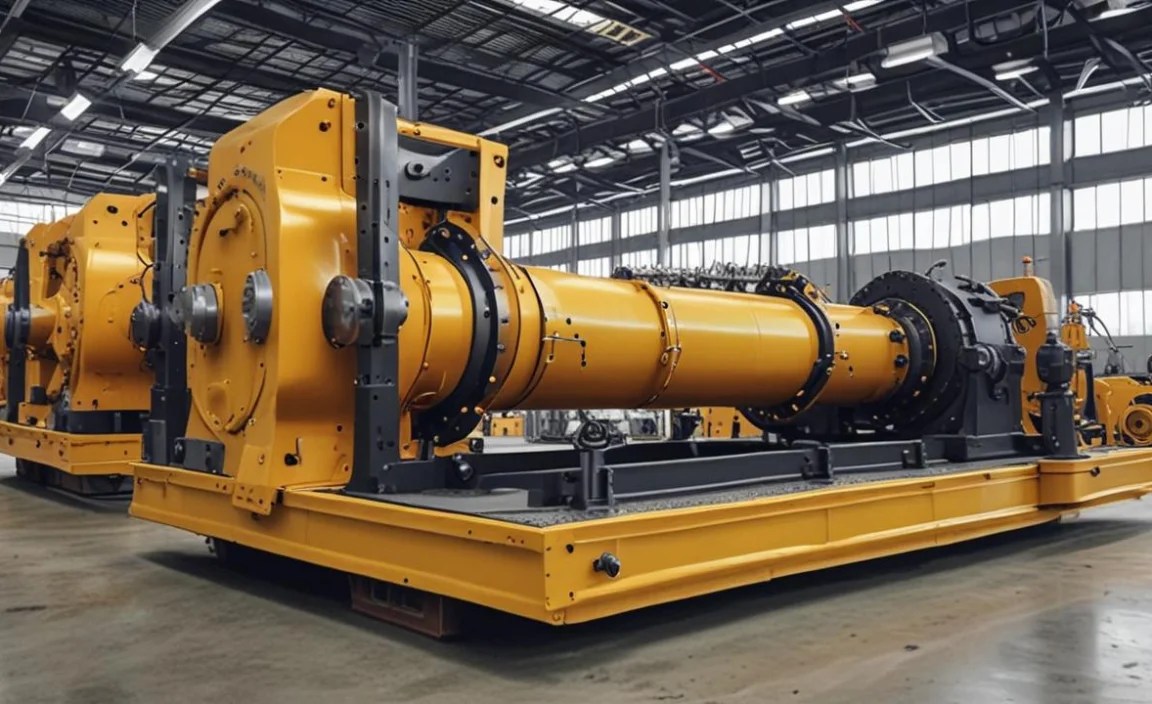

How Does a Line Boring Machine Work? The Process Explained

Understanding the process demystifies the technology and highlights its precision. Here’s a step-by-step breakdown of how a typical line boring operation is performed:

1. Preparation and Setup

• Cleaning: The area around the worn bore and the component itself must be thoroughly cleaned. Any dirt, grease, or debris can interfere with clamping and the cutting process, leading to inaccurate results.
• Component Inspection: The worn bore is inspected to determine its diameter, ovality, and the extent of damage. This helps in selecting the correct tooling and setup.
• Positioning the Equipment: The heavy equipment component might be in its operational position, on a workbench, or on a repair stand. The key is secure access to the worn area.
• Setting Up the Machine: The line boring machine is then brought into position. This typically involves mounting support bearings on either side of the component, just outside the worn bore. These bearings will hold and rotate the cutting bar.

Support bearings are crucial for stability during the line boring process.

2. Installing the Cutting Bar

• Bar Insertion: A precisely machined, hardened steel cutting bar is inserted through the worn bore(s). The bar is typically longer than the section needing repair to allow for stable mounting in the support bearings.
• Bar Alignment: The bar must be perfectly aligned with the original bore centerlines. This is often achieved by carefully adjusting the position of the component relative to the machine or by using precision measurement tools. Some advanced machines have self-aligning features.
• Attaching the Drive Unit: A power drive unit (often electric, hydraulic, or pneumatic) is attached to one end of the cutting bar. This unit provides the rotational force for cutting.

3. Installing Cutting Tools

• Tool Selection: Specialized cutting tools, often called inserts or bits, are mounted onto a tool head that slides along the cutting bar. The size and type of these tools are selected based on the material being cut, the desired surface finish, and the amount of material to be removed.
• Tool Head Placement: The tool head is positioned within the worn bore.

4. The Boring Process

• Rotation Initiated: The drive unit is engaged, causing the cutting bar and the attached tools to rotate.
• Feeding the Tools: The tool head is fed slowly and steadily along the length of the worn bore. The rotating cutters remove material from the interior surface of the bore.
• Controlled Material Removal: The feed rate and depth of cut are carefully controlled to ensure a smooth, accurate finish and to achieve the desired final bore diameter. Multiple passes may be necessary to remove significant material or to achieve a very fine surface finish.

The rotating cutting tools precisely remove metal to restore the bore’s shape.

5. Finishing and Measurement

• Final Diameter: Once the desired diameter is reached, the tools may be advanced for a finishing cut to achieve a high-quality surface finish.
• Inspection: After the cutting is complete and the bar is removed, the newly bored hole is meticulously measured using precision calipers or bore gauges to ensure it meets specifications.
• Component Reassembly: The component is then ready for reassembly with new pins, bushings, or shafts, which will now fit precisely.

This methodical approach ensures that even heavily worn bores can be restored to like-new condition, maintaining critical alignment and extending the life of the equipment.

Types of Line Boring Machines for Heavy Equipment

Line boring machines come in various configurations to suit different applications, sizes of equipment, and workshop environments. Understanding these types can help you identify what might be best for a specific task.

Machine Type	Description	Typical Applications	Pros	Cons
Portable/On-Site Line Borers	Compact, self-contained units designed for mobile use. They are set up directly on the equipment. Typically powered by electric or hydraulic motors.	Field repairs, large components that cannot be moved easily, excavators, loaders, articulated trucks.	Highly versatile, can work on-site, minimal disassembly required, good for very large equipment.	Setup can be more time-consuming, accuracy can depend heavily on operator skill and stable mounting.
Workshop Line Borers	Larger, often stationary machines found in repair shops. They provide a more stable platform and precise alignment for consistent results.	High-volume repair shops, components like tractor frames, industrial machinery, smaller to medium-sized heavy equipment parts.	High accuracy and repeatability, faster setup for recurring jobs, robust construction.	Requires components to be brought to the machine, not suitable for very large or immobile parts.
In-Place/Rotary Boring Machines	A specialized type often used for very large bores like those found in mining equipment or large industrial presses. They use a large-diameter bar and often have powerful hydraulic drives.	Large pivot points on draglines, excavators, press frames, large gearboxes.	Can handle extremely large bores, powerful cutting action, can achieve high precision on massive components.	Very expensive, requires significant space and skilled operators, often requires specialized transport.
Integrated Boring Systems	Some modern machines combine line boring with other repair functions, such as flange facing or drilling. These are advanced, often CNC-controlled units.	Complex repair scenarios, high-precision manufacturing and repair, wind turbines, power generation equipment.	Versatile for multiple repair tasks, high degree of automation and precision, can reduce overall repair time for complex issues.	Highest cost, requires specialized training, technology can be complex to maintain.

The choice of machine type often depends on the scale of the operation, the types of equipment being serviced, and the available resources. For example, a construction company with a large fleet of excavators and loaders will likely benefit from portable line boring units for on-site repairs, while a dedicated heavy equipment repair shop might invest in a more robust workshop machine for higher precision and throughput.

Choosing the Right Line Boring Machine

Selecting the correct line boring machine is crucial to ensure efficiency, accuracy, and a good return on investment. Consider these factors:

• Bore Size Range: What are the typical diameters and lengths of the bores you need to repair? Machines have specific operating ranges for bar diameter and length. Ensure the machine can accommodate your most common jobs.
• Equipment Type and Weight: Will you be working on smaller agricultural tractors or massive mining shovels? The size and weight of the equipment will dictate the power, stability, and reach required from the machine and its supports.
• Portability vs. Workshop: Do you need to perform repairs in the field, or will all work be done in a dedicated shop? Portable units offer flexibility, while workshop machines generally offer greater rigidity and precision.
• Power Source: Electric, hydraulic, or pneumatic? Electric is common for portability, while hydraulic offers significant power for tougher jobs or larger machines. Consider what power sources are readily available at your worksites or shop.
• Automation/Features: Some machines offer features like auto-feed, self-aligning bar supports, or integrated measurement systems. These can significantly improve efficiency and accuracy but also increase cost.
• Budget: Line boring machines represent a significant investment. Determine your budget and look for machines that offer the best balance of capability and cost for your specific needs.
• Manufacturer Support and Training: Reputable manufacturers offer training and ongoing support, which is invaluable, especially for new users or complex machines.

It’s often beneficial to consult with manufacturers or experienced technicians. They can provide insights into which machines are best suited for particular industries or types of equipment. For instance, companies specializing in mining equipment repair might look for heavy-duty, large-bore capacity machines, while a general heavy equipment repair shop may opt for a more versatile, mid-range portable unit.

Key Components of a Line Boring Machine

To better understand how these machines operate, it’s helpful to know their main parts. Each component plays a vital role in achieving precise bore repair.

• Cutting Bar: The core component, a precisely machined, hardened steel bar that rotates and carries the cutting tools. It must be perfectly straight and concentric when supported.
• Drive Unit: The motor (electric, hydraulic, or pneumatic) that rotates the cutting bar. Its power and torque determine the machine’s cutting capacity.
• Tool Head: A component that slides along the cutting bar and holds the cutting tools. It allows the tools to be fed into the workpiece and along the bore.
• Cutting Tools/Inserts: These are the actual cutting edges, usually made of carbide or high-speed steel. They are mounted in the tool head and remove material from the bore.
• Support Bearings: These are critical for stabilizing the cutting bar. They are typically mounted on either side of the workpiece, outside the bore, to ensure the bar remains concentric and rigid during the cutting process.
• Feed Mechanism: This system moves the tool head along the cutting bar. It can be manual or automated, allowing for precise control over the depth and rate of cut.
• Clamping System: Used to secure the machine and its components to the workpiece or the surrounding structure, providing stability during operation.
• Control Panel: Houses the controls for the drive unit (speed, direction) and the feed mechanism.

The quality of each of these components, especially the cutting bar, tool head, and support bearings, directly impacts the precision and success of the line boring operation.

Maintaining Your Line Boring Machine

Just like the heavy equipment you repair, your line boring machine requires proper maintenance to ensure its longevity and the accuracy of its work. Here are some key maintenance tips:

• Keep it Clean: After each use, clean the machine thoroughly. Remove metal chips, dirt, oil, and grease. Pay special attention to the cutting bar, tool head, and feed mechanisms.
• Inspect the Cutting Bar: Regularly check the cutting bar for any nicks, scratches, bending, or wear. A damaged bar will result in poor bore finish and inaccurate alignment. Store bars properly to prevent damage.
• Maintain Cutting Tools: Inspect cutting inserts for wear or damage. Replace them promptly when they become dull or chipped. Dull tools put excessive strain on the machine and can produce a poor finish.
• Lubrication: Ensure all moving parts, especially the feed mechanism and bearing surfaces, are properly lubricated according to the manufacturer’s recommendations.
• Check Support Bearings: Inspect the liner and seals of the support bearings. Damaged bearings can cause the bar to run eccentrically, ruining the bore.
• Review Manuals: Always refer to the manufacturer’s operation and maintenance manual for specific instructions and recommended service intervals.
• Professional Servicing: Periodically have your machine inspected and serviced by a qualified technician, especially if it’s a complex or high-usage unit.

Proper maintenance not only ensures that your machine performs accurately but also prevents costly breakdowns and extends its operational life. Relying on worn tools or a damaged bar can lead to rework, wasted time, and damaged components, negating the benefits of line boring.

FAQ: Your Questions Answered

Q1: What is the main purpose of a line boring machine for heavy equipment?

A1: Its primary purpose is to accurately recondition worn or misaligned cylindrical holes in heavy machinery components. It restores critical alignment and ensures parts fit together correctly, preventing further damage and extending equipment life.

Q2: Can line boring be done on-site, or is it only for workshop repairs?

A2: Line boring can be performed both on-site and in a workshop. Portable line boring machines are specifically designed for field repairs, allowing work to be done directly on heavy equipment that cannot be easily moved.

Q3: How much material can a line boring machine remove at once?

A3: The amount of material that can be removed depends on the machine, the cutting tools used, and the material being cut. Typically, multiple passes are made, with each pass removing a controlled amount of material (often fractions of a millimeter) to achieve a precise finish without stressing the equipment or the machine.

Q4: Is line boring more cost-effective than replacing a worn component?

A4: In most cases, yes. Repairing a worn bore by line boring is significantly less expensive than replacing an entire heavy equipment component, which can represent a substantial capital investment. It also greatly reduces downtime.

Q5: What are the most common pieces of heavy equipment that require line boring?

A5: Excavators, loaders, dozers, cranes, and articulated trucks are among the most common, due to their numerous pivot points (like boom eyes, bucket lugs, and articulation joints) that experience high stress and wear.

Q6: How do I ensure the machine bards are perfectly aligned?

A6: Exact alignment is achieved through careful setup of the support bearings and precise adjustments of the machine relative to the workpiece. Many machines also incorporate features or require specific tooling to facilitate accurate alignment with the original bore centerlines.

Q7: What is the typical lifespan of a repaired bore after line boring?

A7: When line boring is performed correctly with appropriate materials (like new pins and bushings), the repaired bore can last as long as, or even longer than, the original component, provided the equipment is maintained properly and not subjected to conditions beyond its design limits.

Conclusion

Worn bores in heavy equipment are not just minor inconveniences; they are mechanical issues that can escalate into significant performance problems, safety concerns, and costly repairs if left unaddressed. A line boring machine for heavy equipment offers a precise, efficient, and cost-effective solution to restore these critical components to their original specifications.

By understanding how these machines work, the common applications they serve, and the factors involved in choosing and maintaining them, you can make informed decisions about your equipment maintenance strategy. Whether you’re a fleet manager, a repair shop owner, or a mechanic, mastering the art and science of line boring ensures your heavy machinery stays productive, reliable, and safe for years to come. Embracing this technology is an investment in the longevity and performance of your most valuable assets.
